Optical Fiber Circulator Product Name

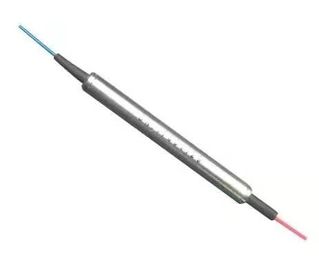

1064nm Optical Fiber Circulator Optical Fiber Parts Single Mode With FC APC Connector


Optical Fiber Circulator Description

Circulators can be used to send optical signals through a single fiber in two directions.

An optical circulator is analogous to an electronic circulator and both perform similar functions.

An optical circulator is a three-port device that allows light to travel in only one direction.

A signal entering Port 1 will exit Port 2 with minimal loss, while a signal entering Port 2 will exit Port 3 with minimal loss. Light entering port 2 experiences a large amount of loss at port 1, and light entering port 3 experiences a large amount of loss at ports 2 and 1.

Optical circulators are non-reciprocal devices. This means that any changes in the properties of the light caused by passing through the device are not reversed by traveling in the opposite direction.


Optical Fiber Circulator Features
High isolation & High Return Loss
Low insertion loss & PDL
Optical Path Epoxy Free

Optical Fiber Circulator Applications

• Add-Drop Multiplexing
• Fiber Sensors
• Bidirectional Pumping
• Bidirectional Signal Transmission Systems
• Coupling In-Line Chromatic Dispersion Compensation Devices



Optical Fiber Circulator Specifications

Note:

• All the specifications are based on the devices without connector, and guaranteed over wavelength, polarization and temperature.

2. Specifications are subject to change without notice.


Optical Fiber Circulator Dimension(mm)



Optical Fiber CirculatorOrdering Information(Example:CIR-12210)
